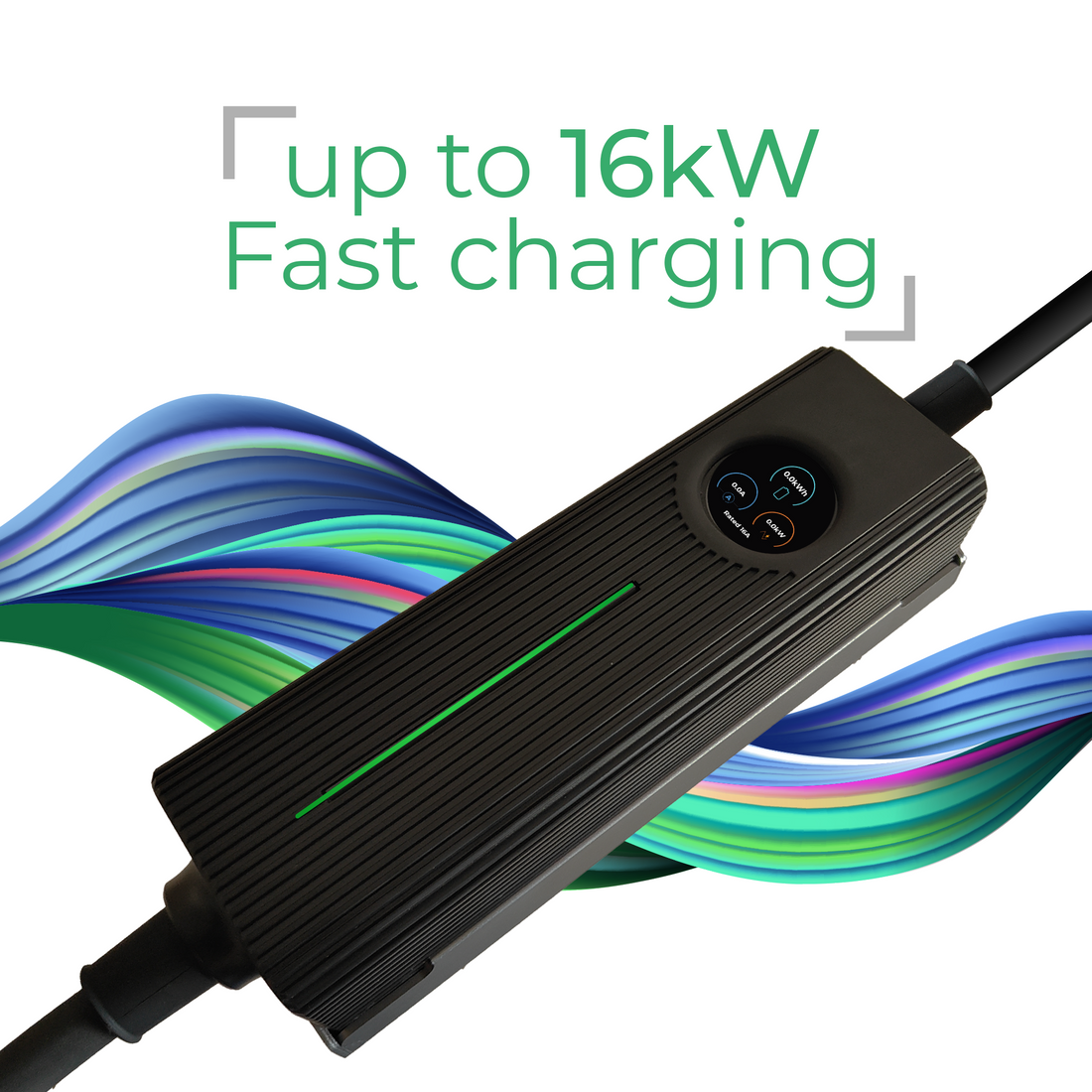

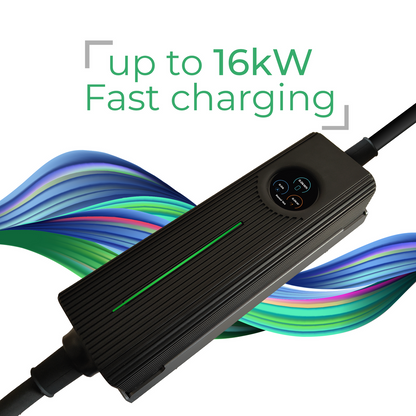

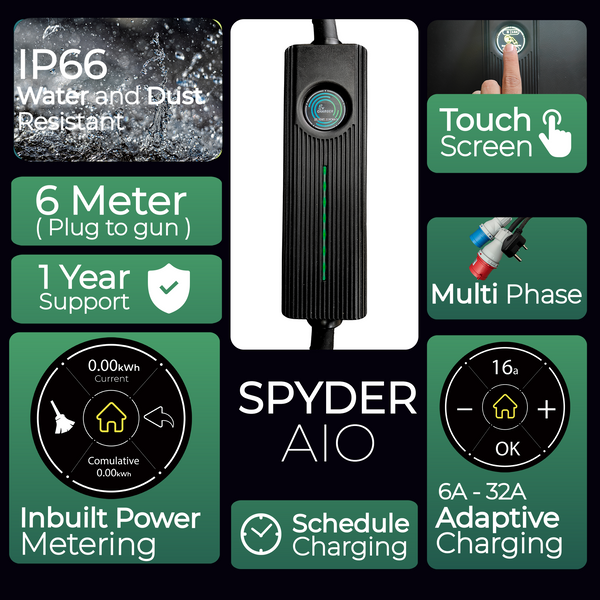

Spyder AIO (All-in-One) 16KW

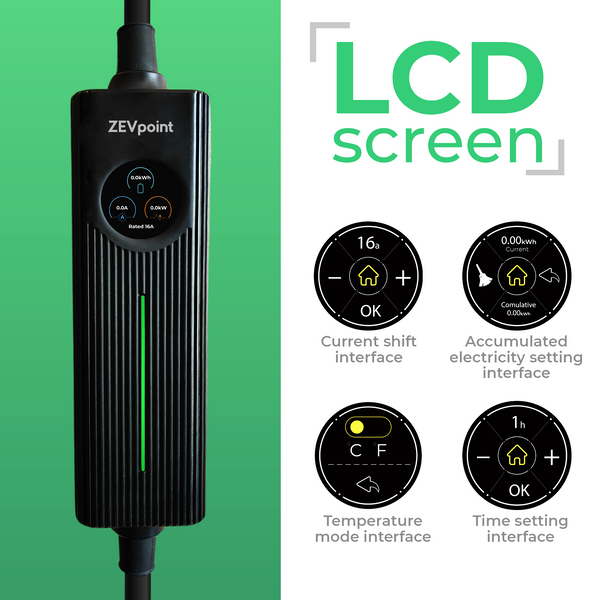

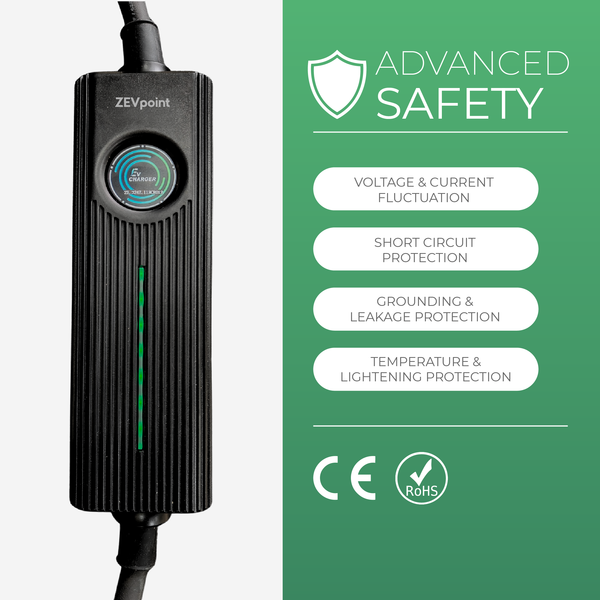

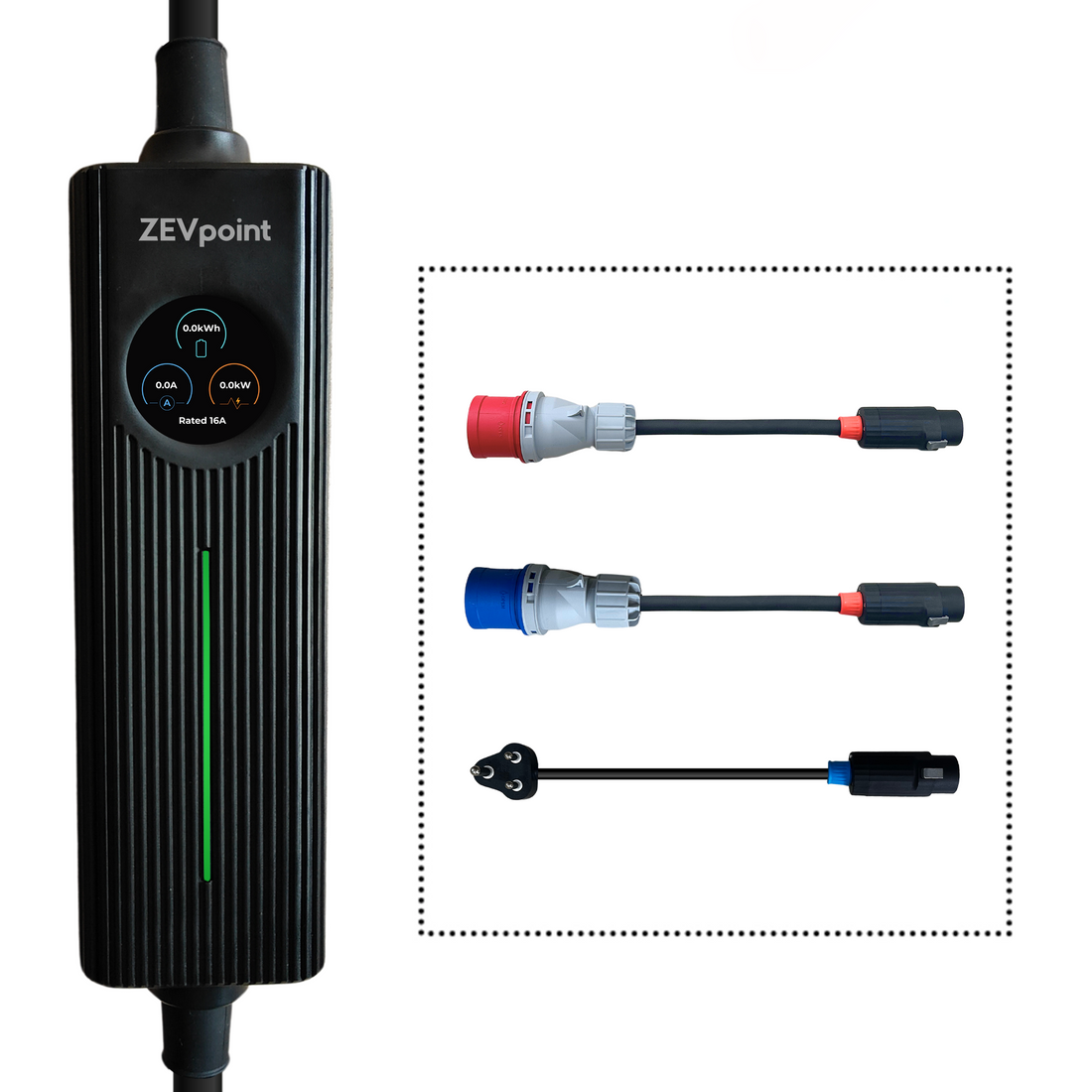

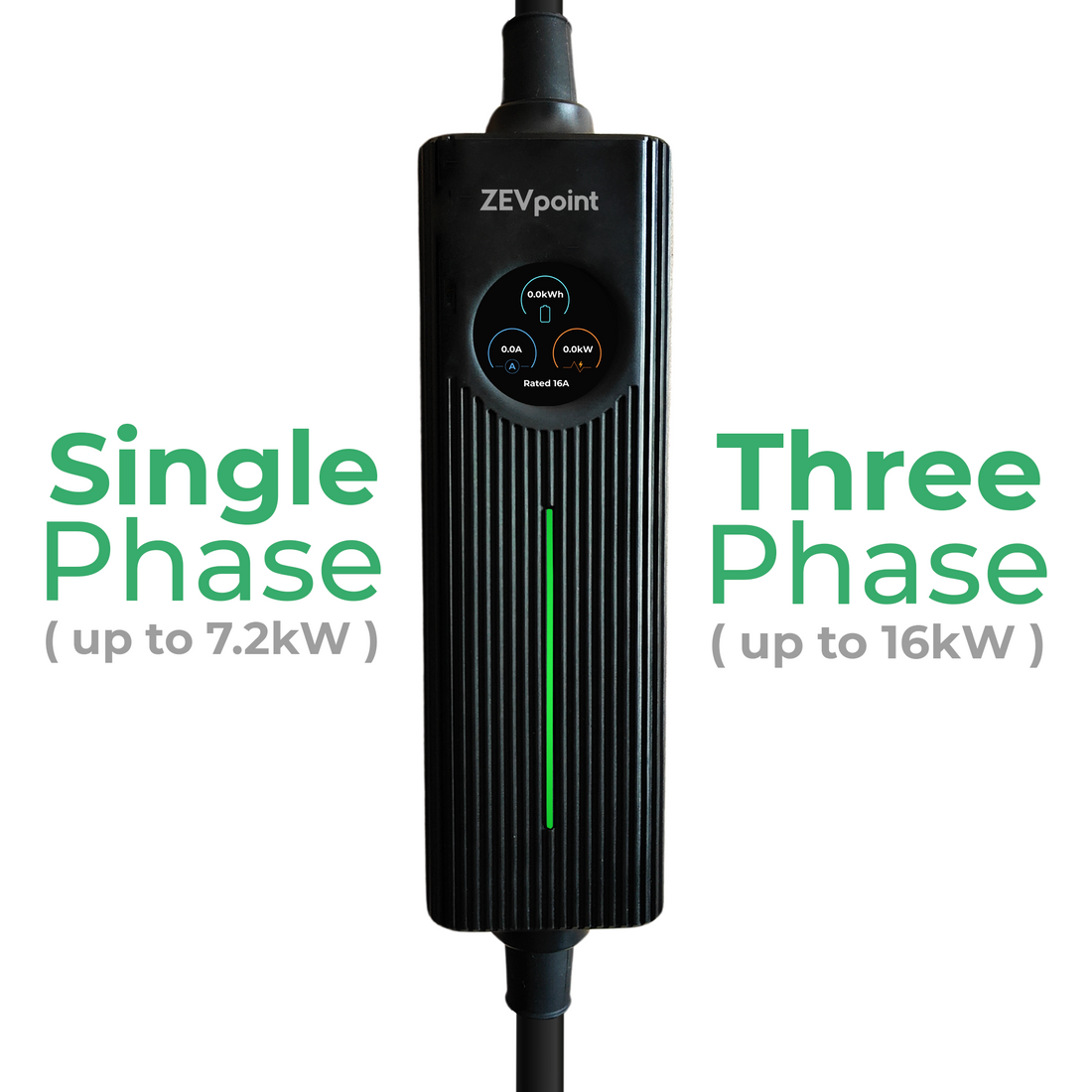

Introducing Spyder AIO, your ultimate all-in-one EV charging solution. With a powerful output of up to 16kW, Spyder AIO ensures a quick and efficient charge for your electric vehicle, wherever you are. Designed for versatility and convenience, this robust charger is perfect for home, office, or on-the-go use. Spyder AIO features adjustable current settings and switchable power plugs, allowing you to optimize the charging performance for any outlet. Compatible with a wide range of EVs, Spyder AIO is equipped with advanced safety features to ensure a secure and reliable charging experience. Specifications & Installation Output: Up to 16kW Current Options: 16A, 32A (single-phase up to 7.2kW), 32A (three-phase up to 16kW) Input Voltage: 220V/400V Cable Length: 6 meters Connector Type: Type 2 (IEC 62196-2) Dimensions: 300mm x 86mm x 66mm Weight: 10 kg (including plugs) Operating Temperature: -40°C to +70°C Safety Features: Over-voltage protection, under-voltage protection, overload protection, short circuit protection, leakage protection, over-temperature protection, water resistance (IP66), dust resistance Installation Requirements Power Socket: A dedicated power socket suitable for 16A or 32A single-phase or three-phase, depending on your charging needs, is required for optimal performance (32A CEE Socket for single phase and three phase are included in the packing) Wiring: Use a minimum of 6 square mm, 3 core copper cable for single-phase connections and 6 square mm, 5 core copper cable for three-phase connections to handle the electrical load safely. In case you live in a hot environment, use should should a 10 square mm copper cable Earthing: Ensure the power socket is properly earthed to prevent electrical hazards. Circuit Breaker: Install a Residual Current Breaker (RCB) and a Surge Protection Device (SPD) to protect against power surges and electrical faults. Voltage Stabilizer: If facing frequent input power fluctuations, use an appropriate voltage stabilizer.
